How to use the bitmap color / image mode feature in Photoshop to create all kinds of amazing designs. How to convert an image into a halftone screen (lines, ellipses, diamonds, crosses etc) as well use custom patterns or use 50% threshold and then combine with color effects etc

** Youtube video tutorial on how to use the Photoshop bitmap mode to add screen / Halftone effects and more **

1. Where is the Photoshop Bitmap Mode

You can find the bitmap mode either via the properties for the document or via the image menu and Bitmap



bitmap mode

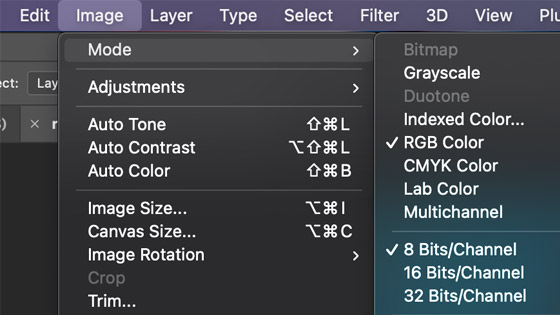

2. How to get to the Bitmap mode

Firstly, go to the image menu and gray scale and then go from gray scale to the bitmap mode



bitmap mode

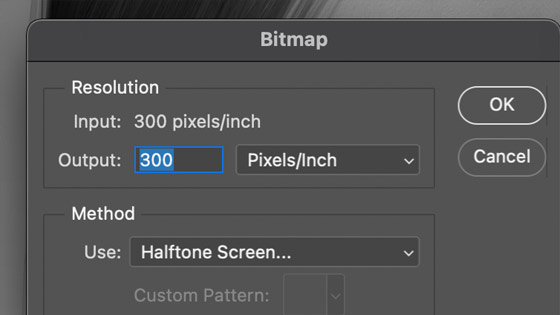

3. Bitmap Mode - many choices such as halftone etc

You will now see another panel which gives a number of options and that means there are a lot of creative options such as halftone screen which also has it's own options. You can also create interesting designs by using different output values such as 300, 72, 1 etc



bitmap mode



4. Methods for the Photoshop Bitmap Mode : Halftone Screen

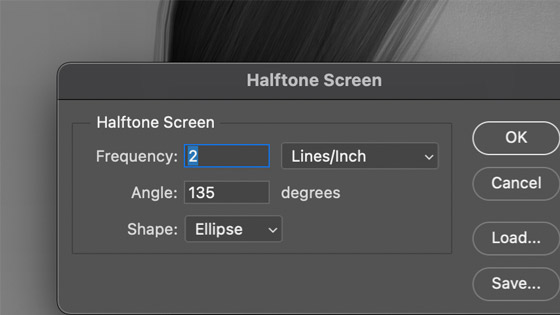

You can set the frequency, low or high as well as angle and also the shape (ellipse, line etc)



bitmap mode

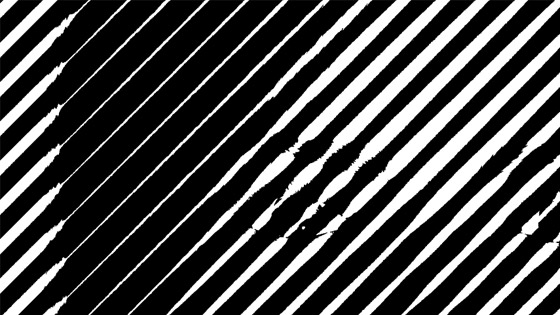

Shape such as line



bitmap mode

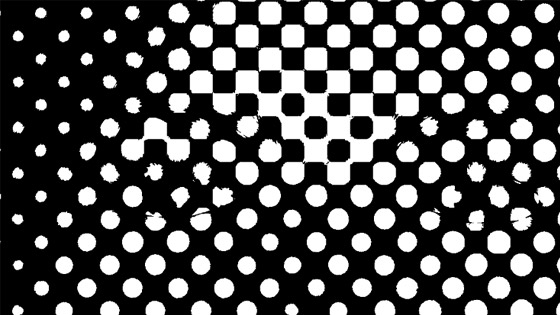

Or using the shape of round



bitmap mode

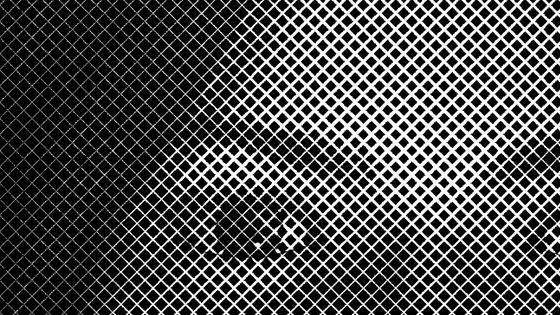

Or change the frequency as well as the method



bitmap mode

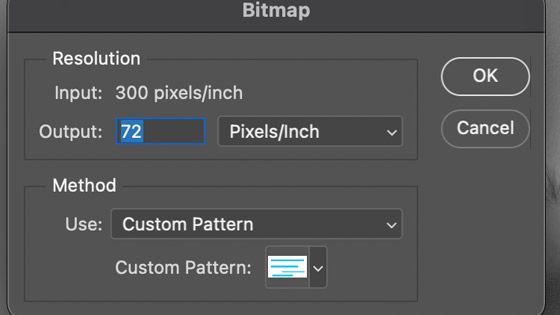

5. Photoshop bitmap mode : Custom pattern

As you have 100s of patterns in your patterns panel, you can also use the custom pattern option and select a pattern to use. You have no control over the scale or rotation



bitmap mode



The end result can be quite interesting and not always what you expect but the patterns means you can create all kinds of wonderful bitmap designs. I would suggest perhaps modifying the image using levels or exposure before you go to the bitmap mode as I always find without lightening the image, the bitmap image is always often too dark for my taste

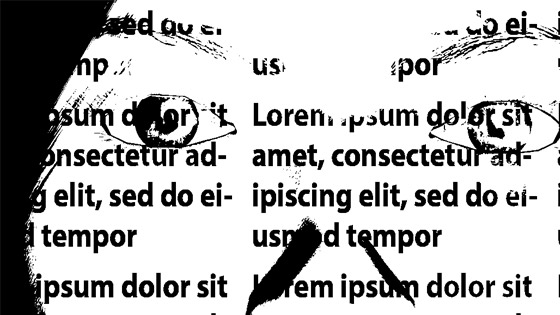

You can use type etc as a pattern design to use with the Photoshop bitmap mode



bitmap mode



There is also an option for a pattern dither but that appears to offer no variation

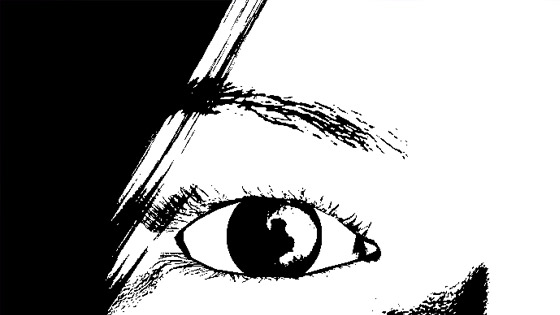

6. Bitmap mode 50% Threshold

A few of the conversions are fairly limited such as 50% threshold method. However, 50% threshold is nice for a cartoon like effect. Of course, you can always combine the design with a saved copy of the image once you return to RGB etc



bitmap mode

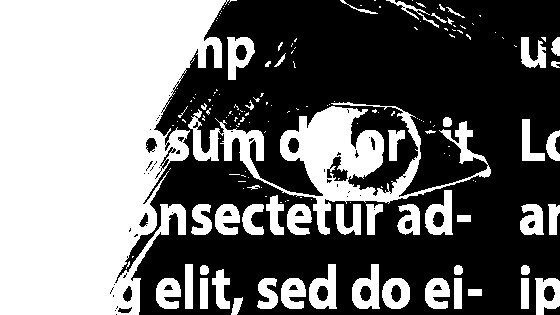

7. Bitmap mode and effects / adjustments

Only invert is available in the bitmap mode for the adjustments which is not surprising as the image is black and white in bitmap.



You can add type to your bitmap mode. Brush strokes work in bitmap mode though the blending mode range is limited. Custom shapes can be used. Define pattern and brushes are available and that is useful. No filter are available



bitmap mode



8. Leave bitmap mode and use RGB etc

Goto the Photoshop image menu and gray scale and then repeat but go to RGB

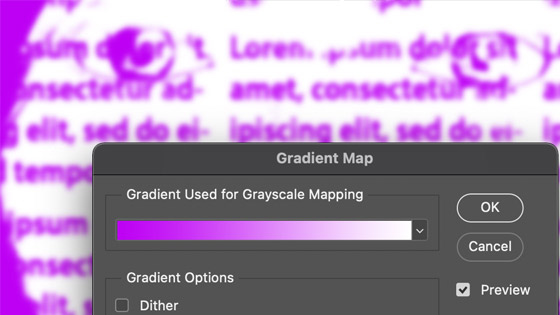

Once you are back into RGB mode then you can add effects etc to the bitmap mode image



bitmap mode

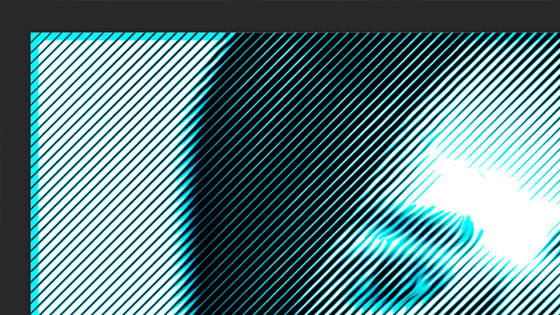

Or use line halftone and then use a blending mode between layers to re-color



bitmap mode
