Photoshop Import / Install / Load Custom Shapes Tutorial

graphicxtras > Adobe Photoshop tutorials > Photoshop shapes tutorials

How to load / install / import custom shapes into Photoshop. The format of the Custom shapes is CSH all accessed via the custom shapes tool in the toolbar. You can use the shapes in 1000s of different ways within Photoshop such as a source for paths / selections and you can also use the amazing designs imported into the application in features such as the actions via tool recordings

** Youtube video tutorial on how to import / load / install custom shapes in Photoshop **



1. How to import the custom shapes into Photoshop

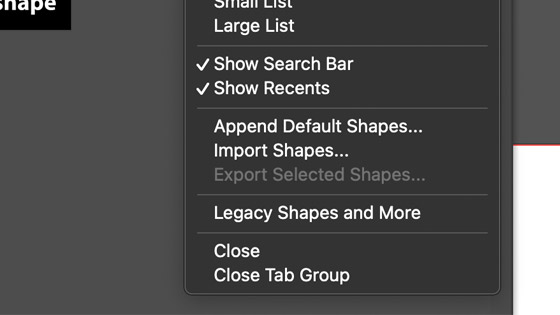

If you are using the most up to date then the way the shapes are installed and loaded into Photoshop has changed, there is no longer a load or replace or a particular need to have a location for the shapes as they are now all imported into Photoshop is the same way as the gradients import / load as well as the strokes etc. Goto the shapes panel found in the window menu of Photoshop. Goto the right side menu at the top of the panel and go to the import shapes command and browse for the CSH files. Select and the shapes will be added as a group in Photoshop in the shapes panel



import shapes



2. Load and replace Photoshop shapes

If you are using an older version of Photoshop then the shapes panel has a right side menu with load / replace commands and also a selection of shapes files found in the shapes installation folder. You can access all the shapes via the load / replace commands and browse for CSH files or just select a file

3. Installation folder for the shapes

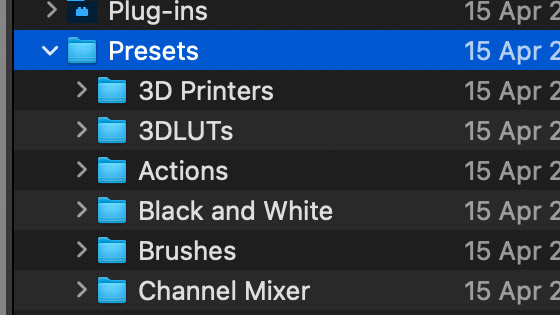

There is no need for this with the latest version of Photoshop as all the files are imported and reside within the application. In earlier version, the files were location in the applications (or Program files) / Adobe Photoshop xx / presets / custom shapes folder



import shapes



4. Installation of user custom shapes

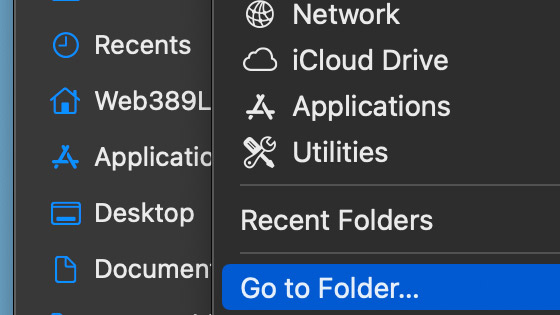

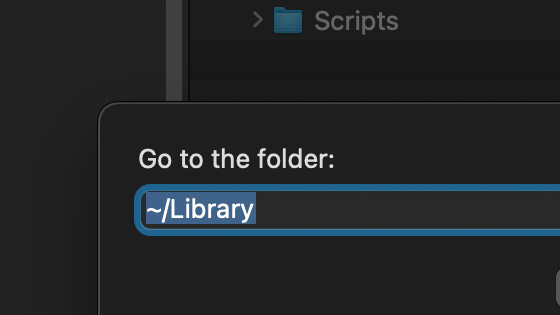

You can also add the CSH custom shapes files and access them via the shapes panel in your own user account section and on the mac that can be accessed via the ~/Library and application support (on the PC it is the appdata folder just to confuse)



import shapes



import shapes import shapes

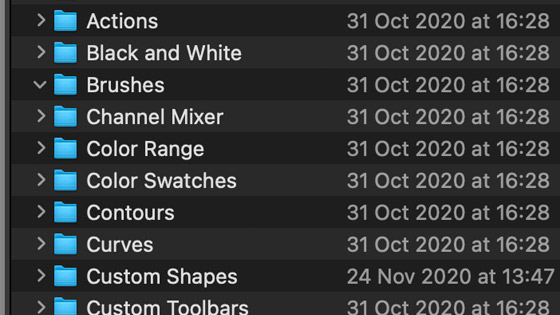

and go to the adobe and the adobe Photoshop xx and then presets and then custom shapes.
